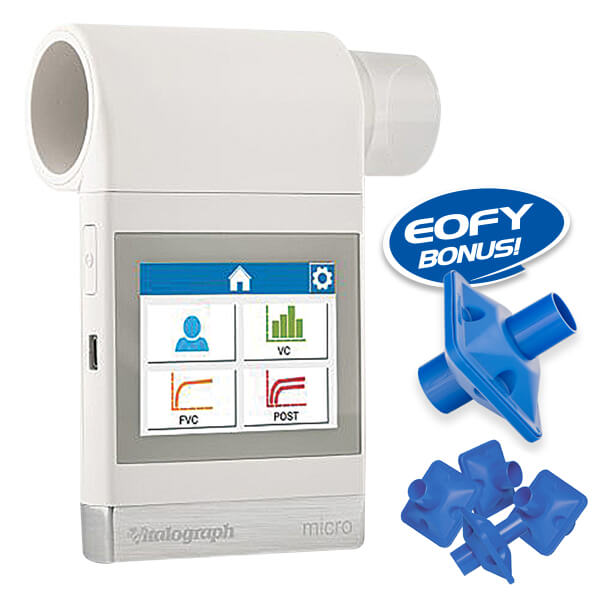

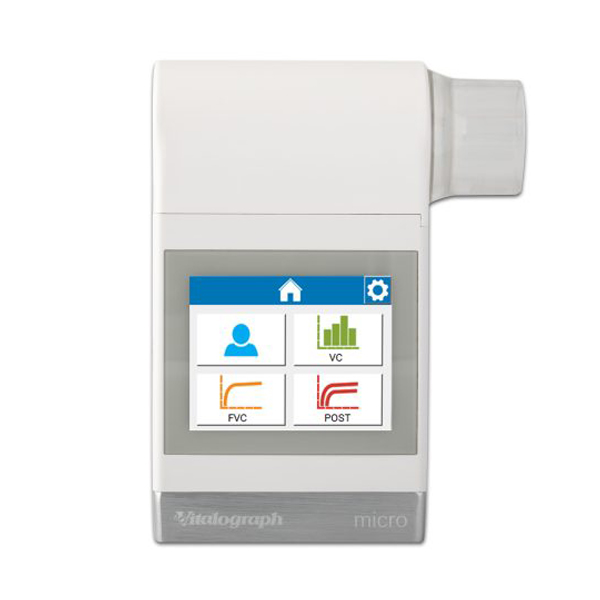

VITALOGRAPH MICRO HANDHELD SPIROMETER
VITALOGRAPH MICRO HANDHELD SPIROMETER

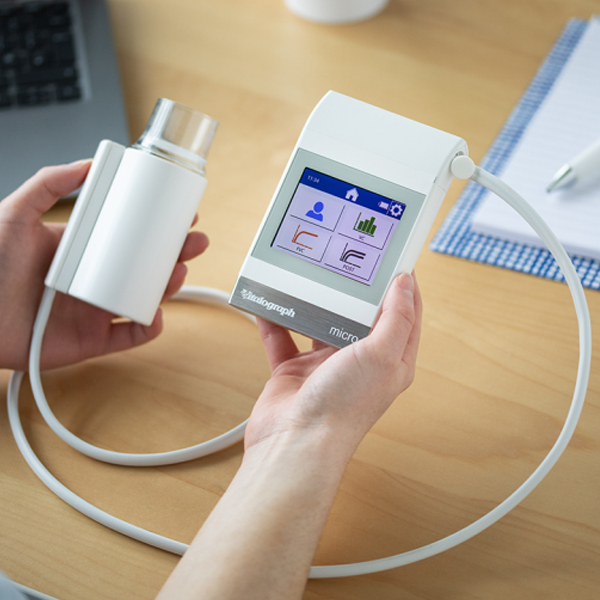

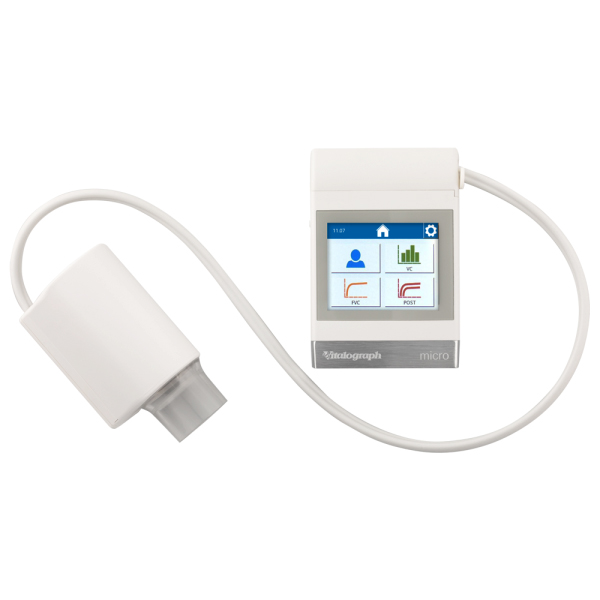

Diagnostic & Medical presents the newly updated Vitalograph Micro, a handheld spirometer offering full-featured functionality. The all-new touchscreen allows for simple and intuitive operation. Powered by USB or batteries, the Micro is portable and ideal for simple testing and reporting of spirometry. Ideal for use on subjects within general healthcare and occupational health environments for point-of-care spirometry testing. Test results and graphs are displayed on the device for instant review. Vitalograph Device Studio reporting software is included as a standard for generating PDF reports and receiving the latest firmware updates. The flowhead on the micro can be set up to work remotely using the optional Remote Flowhead Kit. Separating the flowhead from the device allows the user to view the device screen during testing. Keeping the device clean is easy and inexpensive using Bacterial Viral Filters (BVF). Sold Separately, with validated cross-contamination efficiency >99.999%.
Product Includes
- Vitalograph Device Studio Software
- Protective carry pouch
- USB cable
Product Capabilities
- VC, FVC and bronchodilator responsiveness testing, 48 selectable parameters, GLI predicted equations and Z-scores.
- Low running costs. No need for expensive disposable sensors, turbines, adaptors or flow tubes.
- No sensitive moving parts (unlike turbine spirometers) making it robust and consistently highly accurate even at very low or high flow rates.
- Save time & money on cleaning by using Vitalograph Bacterial Viral Filters (BVFTM).
- Includes Vitalograph Device Studio Software for creating editable PDF reports (for printing, filing, and uploading to EMR systems) and receiving the latest software updates directly to the device.

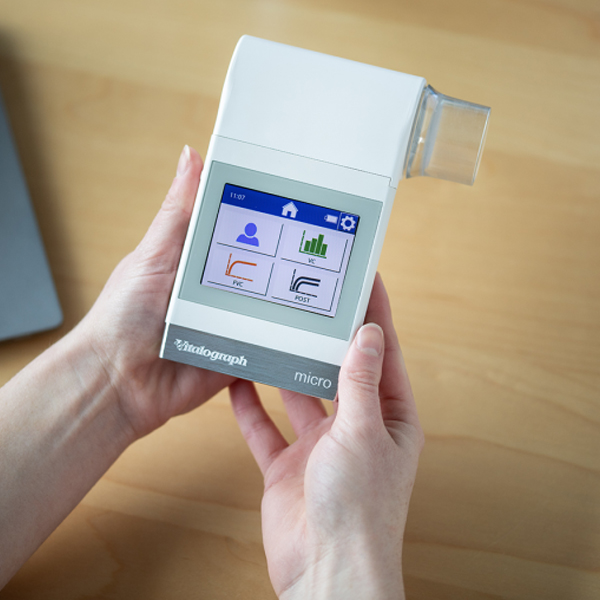

- Touchscreen for simple and intuitive operation.
- A calibration verification routine and guidance are included on the device (as recommended by ATS/ERS 2019 Technical Standards, ARTP).
- The micro has an integrated V-Core flow head, allowing you to focus on helping your patients achieve their best spirometry test, confident that you are capturing accurate and reproducible results.
- The Vitalograph micro uses 4 x 1.5V non-rechargeable IEC60086 certified AAA alkaline batteries. This allows the device to be used without the USB cable connected to the device. Rechargeable batteries may be used but the batteries should be fully charged when commencing testing.
Product Specifications
- Model Number: 6300
- Volume Accuracy: +/-2.5%
- PEF Accuracy: +/- 10% or +/- 10L/min of the reading (ISO 23747:2015)
- Performance Standards: ATS/ERS 2019 Technical Standards, ISO 23747:2015 & ISO 26782:2009
- Safety Standards: EN 60601-1:2006 + A1:2013
- QA/GMP Standards: EN ISO 13485, FDA 21 CFR 820, CMDR SOR/98-282 & JPAL, MDSAP
- Dimensions: 142mm x 81mm x 24mm
- Weight: 260g
- Communications: USB 2.0 & Bluetooth 2/4
- Power Supply : 4 x 1.5V AAA batteries (6V)5V DC via USB 2.0
- Parameters Measured: VC, EVC, IVC, FVC, FIVC, FIVC/FVC, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV1, FEV1 ratio, FEV1/VC, FEV1/IVC, FEV1/FVC, FEV1/FIVC, FEV1/FEV6, FEV1/PEF, FEV3, FEV3/VC, FEV3/FVC, FEV6, PEF (L/s), PEF (L/min), FEF25, FEF50, FEF75, FEF0.2-1.2, FEF25-75%, FEF25-75/FVC, FEF75-85%, FIV1, FIV1/FVC, FIV1/FIVC, PIF (L/s), PIF (L/min), FIF25, FIF50, FIF75, FIF50/FEF50, FEF50/FIF50, MVVind, FMFT, FET, Rind, Vext, Vext/FVC, FEV1/EVC.
*This device comes with a Free 5-year Warranty, including unlimited technical support when registered within 30 days of purchase.
