AnD TM 2440 AMBULATORY BLOOD PRESSURE MONITOR (ABPM) WITH SOFTWARE
AnD TM 2440 AMBULATORY BLOOD PRESSURE MONITOR (ABPM) WITH SOFTWARE

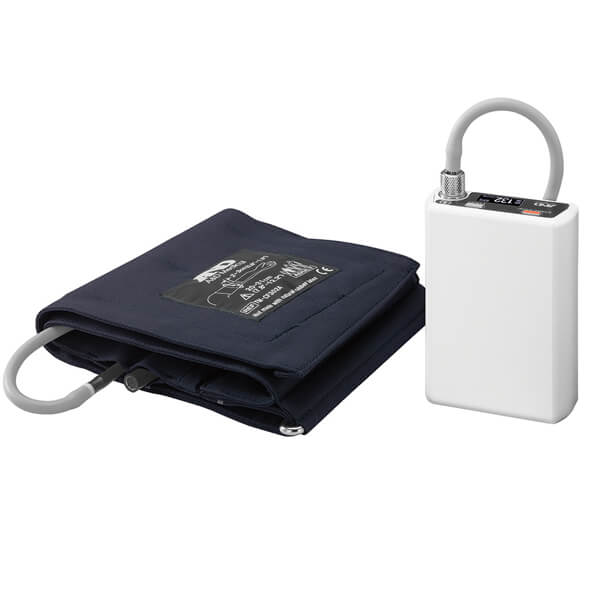

24-Hour TM-2440 Ambulatory Professional Monitor
IHB & Afib Screening, Includes Adult Cuff & Carry Pouch. The TM-2440 monitor is a compact & lightweight Ambulatory Blood Pressure Monitor, that incorporates our latest technology gained from over 40 years of experience in developing and manufacturing precision measurement equipment. This new ABPM range was validated by the new ISO810601-2 protocol, and the blood pressure accuracy was proven to be +/-3mmHg.
Features:
• 24-hour ambulatory blood pressure monitoring range of devices
• Lightweight – 122 grams (excluding batteries)
• Compact – only 66mm x 24.5mm x 95mm (WxHxD)
• Oscillometric measuring method
• AFib+ Irregular Heartbeat detection (IHB) and AFib screening
• Automatically adjusts: Proper Cuff Pressure, Exhaust, End of Measurement
• Battery Power – only 2 alkaline or Ni-MH AA batteries
• Multiple measurement intervals – adapts to patient’s and healthcare professional’s exact requirements
• Bluetooth (BLE) or USB cable data output to computer or printer
• 24-hour clock and calendar
• 3 years warranty
• Local memory recording for up to 600 sets of data
• Waterproof and Dustproof to IP22 Standard – designed ‘with the patient in mind’
• Can be integrated into an Electronic Patient Record System (EPR)
• Secure screw thread cuff connection – to avoid accidental disconnection/error readings

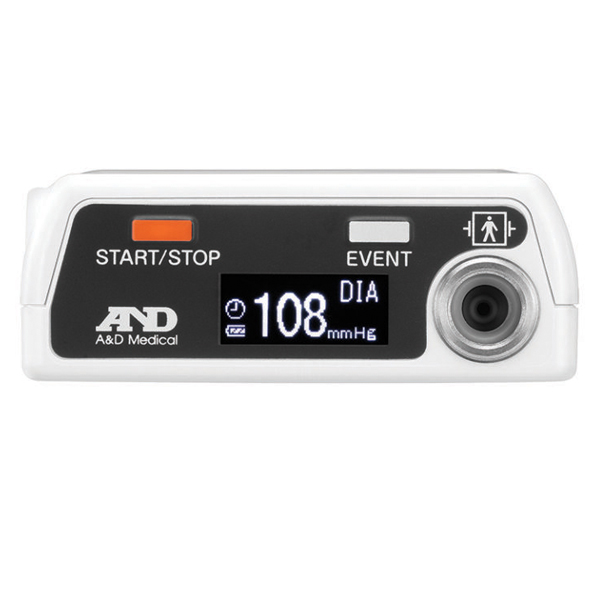

• Self-measurement display, OLED – Ambulatory monitoring display
• 4 cuff options ranging from 15cm to 50cm
• Accuracy: blood pressure +/-3mmHg; pulse +/-5%
• Clinically Validated to ISO810601-2
Unlike some less thoughtfully designed ambulatory devices which are heavy, cumbersome and uncomfortable, and based on traditional desktop/home use type monitors, TM-2440 are designed specifically for the purpose:
Weight:
The weight of an Ambulatory monitor is a big factor when it comes to patient comfort and getting the best results. With the TM-2440 weighing only 122 grams, this makes the new A&D range the lightest in this class. This helps ensure that your patient will hardly know they are wearing their A&D Ambulatory Monitor.
Compact Design:
The size of an Ambulatory Monitor is another important factor when choosing a device that a patient can easily wear comfortably and discreetly for long periods.
The TM-2440 is the smallest in class, measuring just 66mm x 24.5mm x 95mm (WxHxD). This again, helps ensure that your patient hardly notices they are wearing their A&D Ambulatory Monitor.
Soft cloth cuff:
Unlike some of the rough plastic cuffs available on some older devices, TM-2440 benefits from a soft, machine-washable cloth, to ensure maximum comfort whilst the patient wears the device over long periods.
The cuff range offers Upper Arm fitting from 15cm through to 50cm – ensuring peace of mind and a comfortable, accurate fit.
The TM-2440 is truly ‘designed with the patient in mind.’
AFib+:
Having pioneered IHB (Irregular heartbeat)/Circadian Rhythm analysis technology in 2001, A&D has further developed this technology on the new Ambulatory Monitor range.
The new monitors feature A&D’s new, unique Afib+ technology which allows patient screening for both Irregular HeartBeat and Atrial Fibrillation (AFib).
Recording and displaying waveform data.
The TM2441 series records blood pressure as an oscillometric waveform. With our new analysis software, you can check the waveform record for each measurement. Quickly determine the accuracy of measured values.
Connectivity:
The new A&D ABPM range offers both USB and BLE (Bluetooth Low Energy/Bluetooth Smart) as standard. This allows flexibility and easy data transfer to Electronic Patient Record (EPR) systems.
Secure threaded cuff connection:
Unlike some older ABPMs that have a push-in connector, the TM-2440 benefits from a secure thread-locking connection. This helps to ensure the cuff doesn’t become detached whilst the patient is wearing the device during their everyday life, and that their readings are not lost or inaccurate.
The importance of ABPM in managing hypertension has been acknowledged in hypertension guidelines and several authoritative bodies have now issued guidelines on the use of ABPM. A task force of participants at the 1999 Consensus Conference on ABP monitoring, sponsored by the International Society of Hypertension, suggested that:
‘ABPM should be performed only with properly validated devices as an accessory to conventional measurement of BP [blood pressure]. ABPM requires considerable investment in equipment and training and its use for screening purposes cannot be recommended.
ABPM is most useful for identifying patients with white-coat hypertension (WCH), also known as isolated clinic hypertension. ABPM or equivalent methods for tracing the white-coat effect should become part of the routine diagnostic and therapeutic procedures applied to treated and untreated patients with elevated clinic blood pressures. Results of long-term outcome trials should better establish the advantage of further integrating ABPM as an accessory to conventional sphygmomanometry into the routine care of hypertensive patients and should provide more definite information on the long-term cost-effectiveness.’
