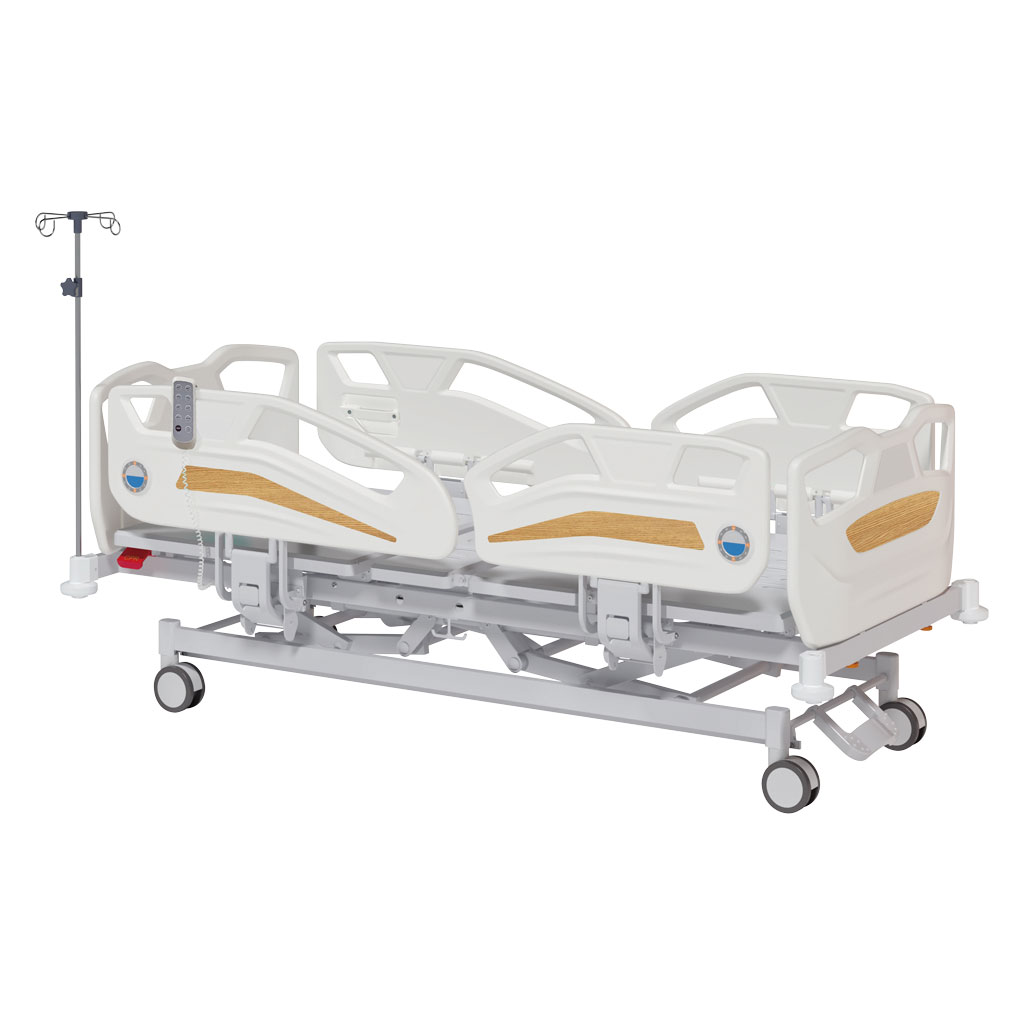

TASK MEDICAL (Three Functions) ANOTEROS ELECTRIC BED
TASK MEDICAL (Three Functions) ANOTEROS ELECTRIC BED
Dimensions:
Overall Dimensions: L2250 x W1040 x H450-750 mm
Bed Platform: 1980 x 900 mm
Backrest Adjustment: 0°–70°±5°
Legrest Adjustment: 0°–40°±5°
Height Adjustment: 450–750±10 mm
Product Features:
1. Adjustable Functions:
• Backrest (0°–70°±5°), Legrest (0°–40°±5°), and Height (450–750±10 mm) with auto-contour feature for optimal patient comfort.
2. Three High-Quality Motors:
• Quiet, durable motors, operated via a remote control for smooth and reliable adjustments.
3. Safety Features:
• Fully length side rails with a disc-shaped damping slow-down device, ensuring safe, noiseless, and smooth operation.
• Safety gap design to comply with IEC 60601-2-52 standard, minimising risk of patient falls.
4. Emergency and Convenience Features:
• Removable headboard and footboard for emergency use, transforming into a CPR board for quick medical intervention.
• Corner bumpers provide shock absorption and protect patients from injuries.
5. Additional Comfort and Functionality:
• Radiolucent backrest board and optional X-ray cassette to facilitate diagnostic imaging.
• Blue liquid angle indicators clearly display bed positioning on both backrest and legrest side rails.
• Bedside card for patient name display, along with four infusion holes and two drainage hooks for added convenience.
6. Optional Features:
• Orthopedic traction frame holes on all four corners for use in orthopedic clinical applications.
7. Mobility:
• Four 125mm diameter castors with central brake system ensure easy movement and secure positioning.
Product Materials:
• Frame: Cold-rolled steel with electrostatic powder coating for durability and long-term use.
• Side Rails & Bed Platform: HDPE plastic, easy to clean and detachable.
• Headboard/Footboard: Detachable HDPE for convenience and hygiene.
• Corner Bumpers: Durable, elastic material for enhanced patient protection.
Product Parameters:
• Bed Platform: 1980 x 900 mm
• Backrest: 0°–70°±5°
• Legrest: 0°–40°±5°
• Height Adjustment: 450–750±10 mm
• Brakes: Central Brake
• Motor: 3 Motors
• Control Panel: Remote Control
• Material Finish: Wood Grain Lake Blue
