Healthtec LynX Ultrasound Table with Cut Out (610mm wide)
Healthtec LynX Ultrasound Table with Cut Out (610mm wide)
Healthtec’s LynX Ultrasound Cutout Table features a small footprint with scissor lift design so it can be used in even the smallest of ultrasound rooms. The backrest can be manually adjusted from flat to +70º while the footrest can be manually adjusted from flat to +30º/-90º for perfect patient positioning.
Medical-grade total lock castor wheels swivel 360 degree are durable and easy to maintain.
Your LynX Ultrasound Cutout Table can be ordered in a colour of your choice with accessory options to further enhance the patient and user experience. All Healthtec tables are manufactured using quality Dunlop upholstery foam.
Features
Electric Height Adjustment with Foot Switch
X-Frame Lift Action Minimises Pinch and Crush Points
Heavy Duty Individually Lockable Castors
Durable Powder Coated Rust Resistant Frame
High Quality Anti-microbial Vinyl and CFC Free Foam
Australian Designed and Manufactured
Warranty (Parts Only) – 10 Year Structural on base and frame – 5 Year Electrical – 3 Year Upholstery

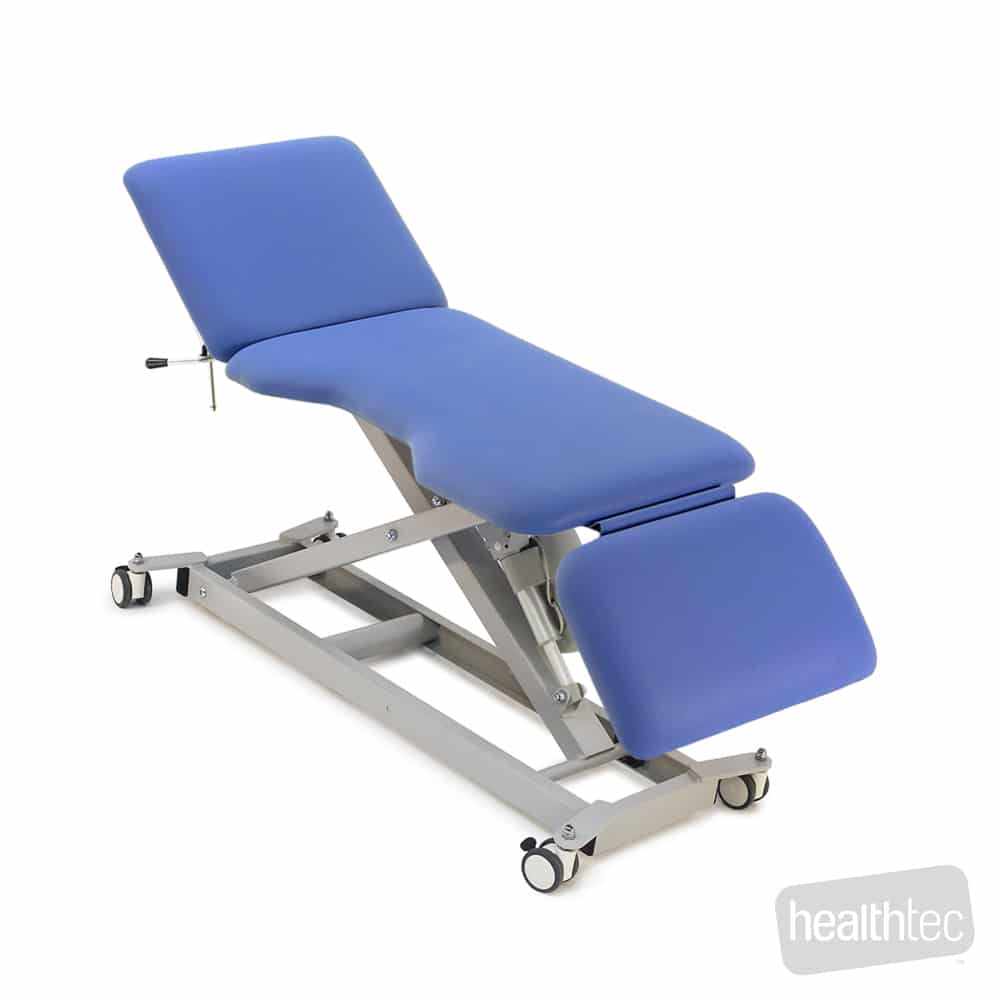

LynX Ultrasound Table with Cut Out
Designed for the Ultrasound Imaging and Diagnostic Clinics this table provides a comfortable working environment for both the Sonographer and patient. This mid-section cutout version of the LynX Ultrasound Table provides greater patient access.

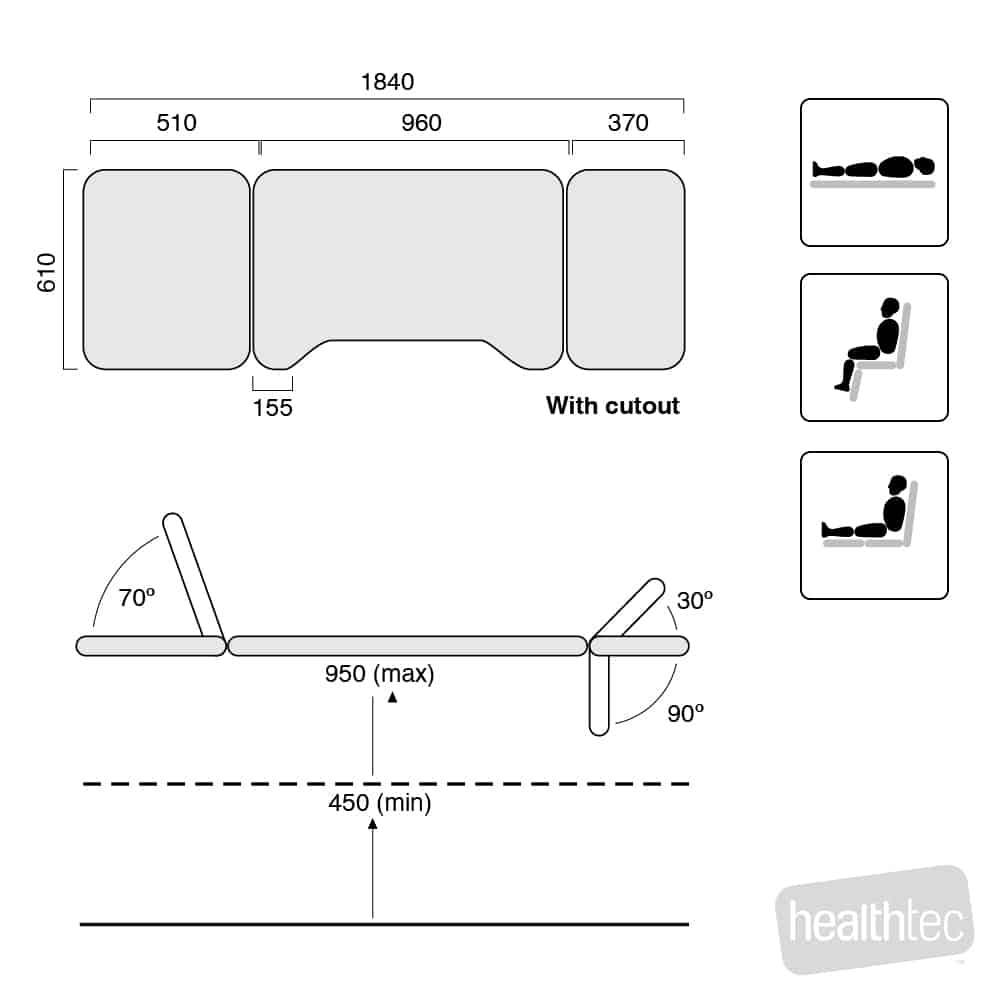

PRODUCT INFORMATION
Maximum Working Load 400kg (Stationary)
Maximum Lifting Capacity 250kg (Moving)
Minimum Working Height 450mm
Maximum Working Height 950mm
Table Width 610mm
Table Length 1840mm
Cushioning 50mm Foam
Controller Foot Switch
Base/Castor LynX-Frame with lockable castors
Backrest Manual Adjustment +70º
FootRest Manual Adjustment +30º to -90º
