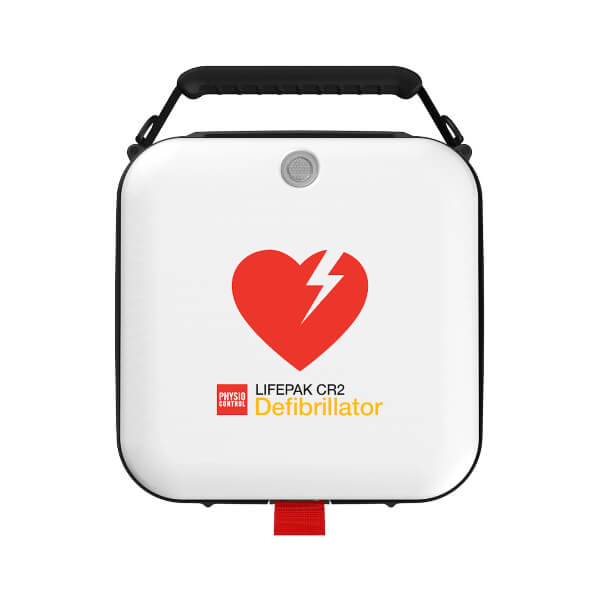

LifePak CR2 Essential Semi-Automatic Defibrillator
LIFEPAK CR2 is a reliable and user-friendly Automated External Defibrillator (AED) designed to respond rapidly to sudden cardiac arrest. Its semi-automatic operation requires the responder to press the shock button when prompted, providing control during the rescue process. The device features a layered design with clear, bold graphics and audible instructions, ensuring ease of use for trained and untrained individuals. The QUIK-STEP™ electrodes peel directly off the base for faster placement, and the ClearVoice™ technology adjusts volume based on background noise for clear guidance. The CPR Coaching system provides real-time feedback, including a metronome to set an effective compression pace. The Child Mode button allows for reduced energy levels that are suitable for young children without changing electrodes. With an IP55 rating, the LIFEPAK CR2 is protected against dust and water, making it suitable for various environments. The device performs regular self-tests and has a battery and electrode pad life of four years, ensuring readiness when needed. It also offers bilingual capabilities, allowing users to switch between two pre-set languages.
Specifications:
Waveform: Biphasic Truncated Exponential with voltage and duration compensation for patient impedance
Patient Impedance Range: 10–300 ohms
Energy Output: Configurable from 150 to 360 joules
Default Energy Settings: Adults: 200J, 300J, 360J; Paediatric: 50J, 75J, 90J
CPR Coaching: Provides real-time feedback with metronome and voice prompts
Child Mode: Delivers reduced energy levels appropriate for children
Language Options: Bilingual toggle between two pre-set languages
Environmental Protection: IP55 rating for dust and water resistance
Operating Temperature: 0°C to +50°C
Storage Temperature: -30°C to +60°C
Altitude Range: -382 to 4,572 meters
Humidity Range: 5% to 95% (non-condensing)
Dimensions: 22.6 cm (W) x 27.4 cm (H) x 9.7 cm (D)
Weight: Approximately 2.0 kg
Battery Expiry: 4 years
Electrode Expiry: 4 years
Warranty: 8 years
