Illuco IDS 9100 Dematoscope 12x Optical Magnification
Illuco IDS 9100 Dematoscope 12x Optical Magnification

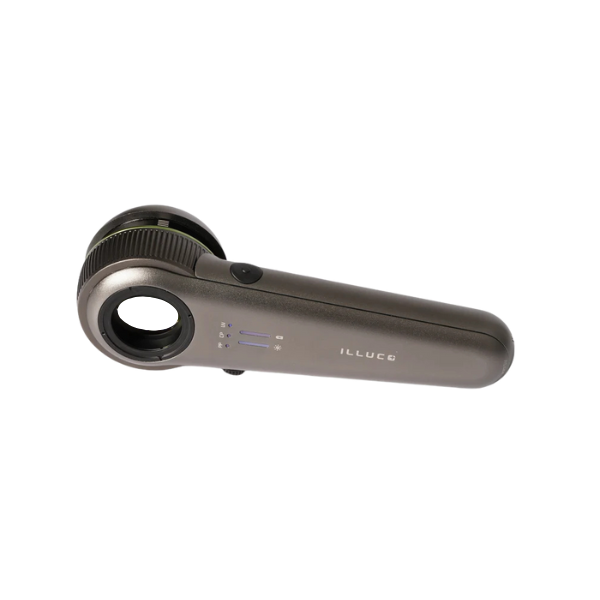

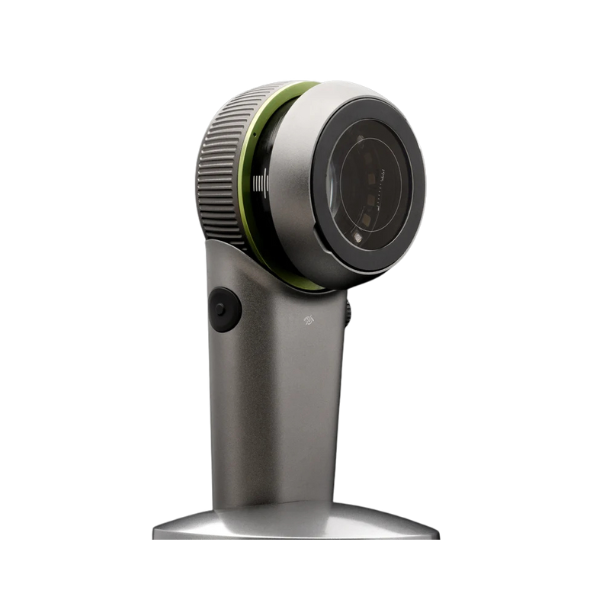

ILLUCO IDS-9100 Dermatoscope
The ILLUCO IDS-9100 Dermatoscope is designed for dermatology professionals who require enhanced visual clarity during skin examinations. It offers 12x optical Magnification with a resolution of 0.006 mm, facilitating detailed observation of skin structures. The device features a 20 mm aperture, providing a broad field of view to assess larger skin areas efficiently. Equipped with 12 lighting configurations—comprising cross-polarised, parallel-polarised, and UV modes—it aids in identifying various skin conditions, including pigment changes and infections. The dermatoscope ensures accurate colour representation with a high colour rendering index and operates on a rechargeable 3500 mAh lithium-ion battery, offering up to 300 minutes of continuous use. Its compatibility with smartphones and cameras supports high-resolution image capture.
Key Features
•Magnification: 12x: Provides detailed and precise visualisation.
•UV Light: Enables enhanced diagnostic accuracy with ultraviolet illumination.
•Full Metal Body: Durable and premium design with full metal housing, unlike competitors that use plastic parts.
•Extended Usage Time: 1.5× longer operating time thanks to a high-capacity rechargeable battery.
•Natural Color Temperature: Light is optimised to resemble natural daylight, offering true-to-life skin tone representation.
•Easy-to-Read Display: Clear and uncluttered interface for quick, stress-free operation.
•Ergonomic Body Grip: Designed for comfortable one-handed use, maximising user convenience.

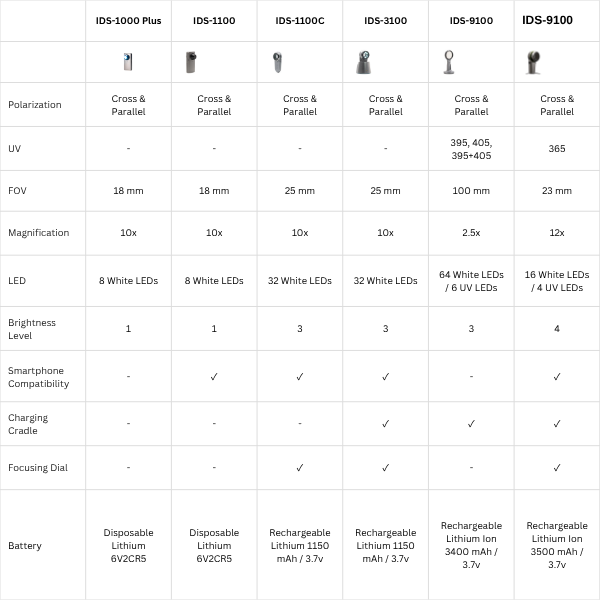

Specifications:
Magnification: 12x optical
Resolution: 0.006 mm
Aperture: 20 mm
Lighting Modes: Cross-polarised, parallel-polarised, UV (365 nm)
Brightness Levels: 4-step adjustment
Battery: Rechargeable 3.7V 3500 mAh lithium-ion
Usage Time: Up to 300 minutes of continuous operation or 14 days
Charging: Desk charger and USB-C, both included.
Diopter Adjustment: -6 to +6
Compatibility: Smartphone and camera adaptable
Hygiene Feature: Infection control film included
Warranty: 7 Years
What's included
IDS-9100 Main Unit
Compact Universal Clamp
Leather Pouch

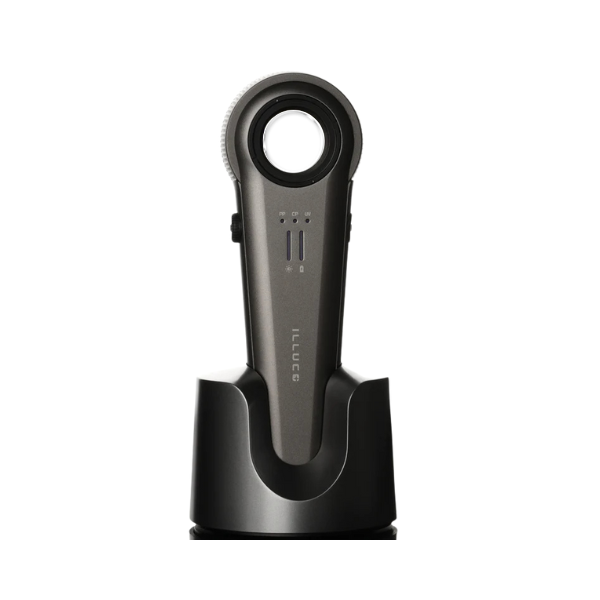

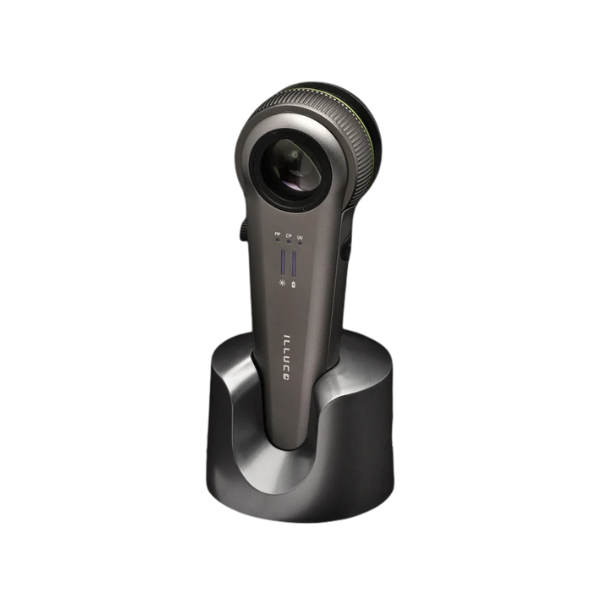

Desk Charger and USB-C Charging Cable
Infection Control Film
User Manual
Technical Specifications

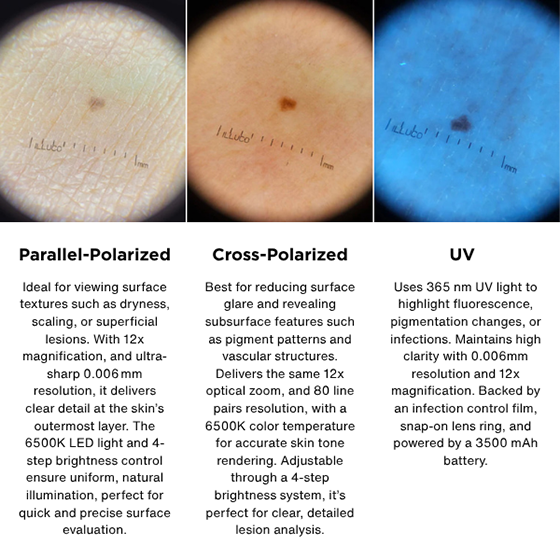

Cross & Parallel Polarisation
The IDS-9100 features both parallel and non-polarised lighting modes, enabling you to visualise the skin surface and subsurface structures clearly. This reduces reflection and glare, helping you detect pigmentation, vascular patterns, and lesions with enhanced clarity.
20 mm Aperture
Equipped with a 20mm field of view, the IDS-9100 captures wide, detailed images, reducing the need for repositioning during examinations of larger lesions or skin areas.

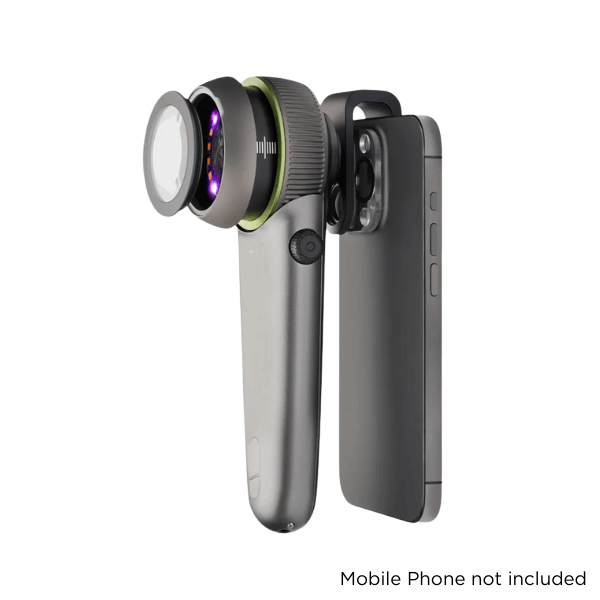

Camera & Smartphone Compatibility
Easily connect the IDS-9100 to your smartphone or camera system for high-resolution image capture and seamless documentation, making patient recordkeeping efficient and organised.
12x Magnification
Advanced 12x optical Magnification with 0.006mm resolution allows for precise visualisation of skin abnormalities, supporting accurate diagnosis of subtle dermatological features.
365 nm UV
The built-in UV mode (365 nm, 18 mW) enables fluorescent imaging for better identification of pigmentation changes, infections, and other subsurface skin conditions, thereby enhancing diagnostic confidence.
USB C
Powered by a 3.7V 3500 mAh lithium-ion battery, the IDS-9100 offers up to 300 minutes of continuous use and up to 14 days of standby time, with convenient and fast USB-C charging.
-6 to +6 dpt
The diopter adjustment range of -6 to +6 ensures sharp focus for all users, whether or not they wear corrective lenses, providing flexibility and precision during every exam.
