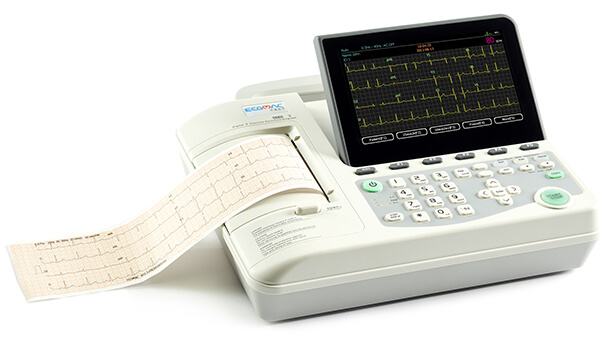

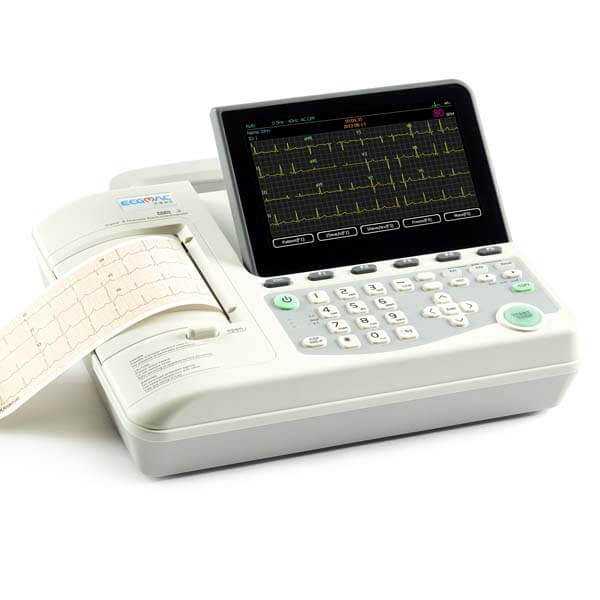

ECGMAC 301 3 CHANNEL STAND ALONE ECG 7 INCH LCD DISPLAY, THERMAL PRINTER EM-301
ECGMAC 301 3 CHANNEL STAND ALONE ECG 7 INCH LCD DISPLAY, THERMAL PRINTER EM-301
ECGMAC 301 INTERPRETATIVE ECG
The 3 Channel EM-301 Interpretive electrocardiograph features a foldable colour screen capable of displaying 12 waveforms .
Simple and convenient operation, user friendly design, to bring more comfortable operating experience to medical staff.
OVERVIEW
• Simultaneous 12 leads ECG acquisition and display
• Automatic ECG measurements and interpretation
• Support pacemaker detection
• Multiple format reports export: PDF, JPG, BMP, EM-XML, SCP*, DICOM, FDA-XML*
• Support Lead off alarm
PRODUCT BENEFITS
• Simultaneous 12 leads ECG acquisition and display
• Simultaneous 3 leads ECG printing with 80mmthermal paper
• 7 inch 800 x 480 TFT color LCD
• Alphanumeric keyboard
• Built-in rechargeable lithium battery, print up to 1080 ECG reports
• Pacemaker detection
• Precise ECG auto-interpretation program
• USB SLAVE port can be connected to PC-ECG software (optional)
• Connect to an external USB printer supporting PCL6 language by USB MASTER port to print12 leads ECG report on A4 paper
• Network transmission (optional)
• Software upgrade automatically via SD card
SPECIFICATIONS
• Lead : Standard 12 leads
• Input Circuit : Built-in defibrillator protection
• Acquisition Mode : Simultaneous 12 leads acquisition
• Measurement Range : ±5mVpp
• Time Constant : ≥3.2s
• Frequency Response : 0.05Hz~150Hz (-3dB)
• Sensitivity : .5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
• Input Impedance : ≥50MΩ
• Input Circuit Current : ?0.05µA
• Noise Level : 15µVp-p
• Anti Baseline Drift : Automatic
• Patient Current Leakage : ?10µA (220V-240V)
• Filter : EMG Filter?25 Hz / 30 Hz / 40Hz
• Low Pass Filter75 Hz / 100 Hz / 150Hz
• DFT Filter0.05 Hz/0.15 Hz/0.25 Hz/0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS
• AC Filter : 50 Hz / 60Hz
• CMRR : 100dB
Recording Mode :
- Automatic: 3CH×4+1R, 3CH×4
- Manual: 3CH, 2CH, 1CH
- Rhythm: Any lead selectable
• Recording System : Thermal matrix printing
• Recording Paper : Roll: 80mmx20M
• Paper Speed : 5 mm/s, 6.25 mm/s, 10 mm/s, 25 mm/s, 50 mm/s
• Display : 800×480 pixel TFT LCD
• Interface : Network interface, USB Master/Slave, SD card
• Safety Standard : IEC I/CF
• Sample Rate : Normal:1000sps/channel & Pacemaker: 10,000sps/channel
• Pacemaker Detection : ≥± 2 mV ≥± 0.1 ms
• Dimension : 310mm×244mm×65mm
• Weight : 2.25Kg
Power Supply :
- AC:100~240V, 50/60Hz, 30VA~100VA
- DC:14.8V/2200mAh, built-in lithium battery
